金封（TO封裝）LED的型號說明：
例：WS365D-41NZ
| WS | TO封裝 |
| 365 | 波長 |
| 41 | 外形設計 |
| Z | 齊納二極管 |
| 外形設計 | 封裝 | 描述 | 照片 |

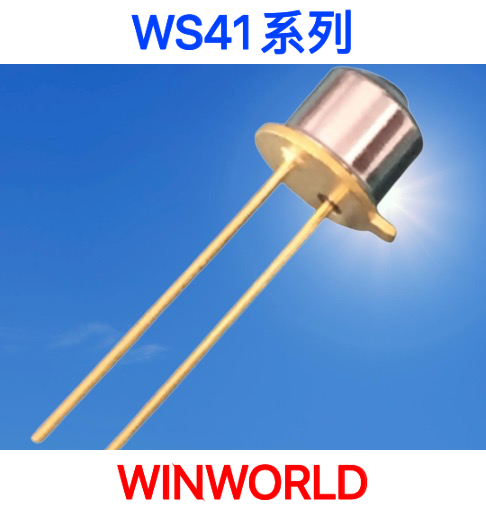

| 41 | TO-46，鍍鎳 非球面透鏡 | 小角度，類似平行光設計 |
|

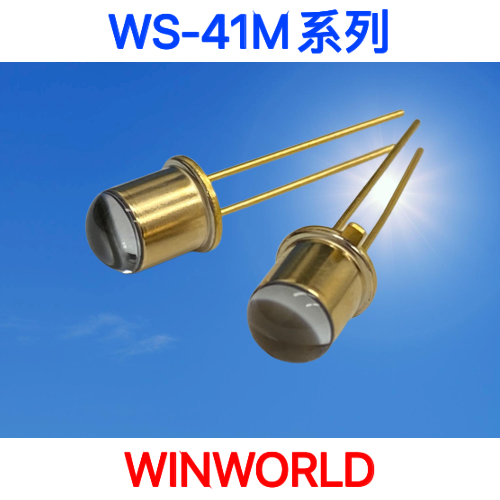

| 41M | TO-18，鍍金 球面透鏡 | 15-20度 |  |
型號 | 峰值波長 典型值 (nm) | 輻射功率 典型值 (mW) | 輻射強度 典型值 (mW/sr) | 半高 全寬 (nm) | 指向角 典型值 (deg) | 測試 電流 (mA) | 正向電壓 典型值 (V) | 最大 DC電流 (mA) |
| WS325-41RNZ | 325 | 1.2 | 12.5 | 10 | 12 | 20 | 4.5 | 50 |
WS365D-41RNZ | 367 | 14.0 | 740 | 10 | 6.5 | 20 | 3.4 | 50 |
WS405-41RNZ | 405 | 9.0 | 420 | 11 | 6 | 20 | 3.2 | 50 |
| WS405-41RNZC | 405 | 9.0 | 420 | 11 | 6 | 20 | 3.2 | 50 |
| WS415D-41RNZ | 415 | 10.5 | 530 | 18 | 5.5 | 20 | 3.2 | 50 |
WS470-41N | 470 | 3.0 | 110 | 23 | 6 | 20 | 2.7 | 50 |
WS525-41N | 525 | 3.7 | 105 | 30 | 8 | 20 | 3.0 | 50 |
WS535-41N | 535 | 3.5 | 120 | 35 | 7.5 | 20 | 2.8 | 50 |
WS545-41N | 545 | 2.8 | 80 | 37 | 7.5 | 20 | 2.7 | 50 |
WS575-41RYZ | 575 | 5.8 | 90 | 130 | 9 | 20 | 2.8 | 50 |
WS600-41N | 600 | 2.8 | 95 | 15 | 7 | 20 | 2.2 | 50 |
WS630-41N | 630 | 5.0 | 165 | 17 | 7 | 20 | 2.3 | 50 |
WS660N-41RN | 660 | 9.3 | 320 | 15 | 7 | 20 | 1.9 | 50 |
WS700-41N | 700 | |||||||
WS735-41N | 735 | 10.0 | 280 | 22 | 8 | 50 | 2.0 | 100 |
WS810-41RN | 810 | 11.0 | 260 | 30 | 8 | 50 | 1.5 | 100 |
WS850-41N | 850 | 11.0 | 370 | 30 | 7 | 50 | 1.5 | 100 |
WS880-41N | 875 | 15.0 | 450 | 31 | 5 | 50 | 1.7 | 100 |
